£208.33 per year + vat
MOST POPULAR
The advanced 2D CAD drafting solution with powerful, time-saving functionalities and an API to help bring your designs to life quickly and easily.
Ideal for companies, individuals, and designers.
£483.33 per year + vat
The robust 2D drafting and 3D design experience with full 3D capabilities and constraints features to help meet all of your drafting, modeling, prototyping, manufacturing, laser cutting and 3D printing needs.
Created for individuals, designers, companies, manufacturers and makers.
The comprehensive 2D drafting and 3D design solution to meet any drafting, modeling, prototyping, manufacturing, laser cutting and 3D printing requirement. Includes full technical support, deployment and network licensing to enable concurrent usage.
Designed for large organizations with many users or multiple sites.
*All purchases of DraftSight Professional and Premium are processed directly via Dassault Systemes. DraftSight Enterprise and Enterprise Plus, is purchased though SOLID Applications (minimum purchase 2 seats). Request your quote above.
DraftSight is a feature-rich 2D and 3D CAD solution for architects, engineers and construction service providers, as well as professional CAD users, designers, educators and hobbyists.

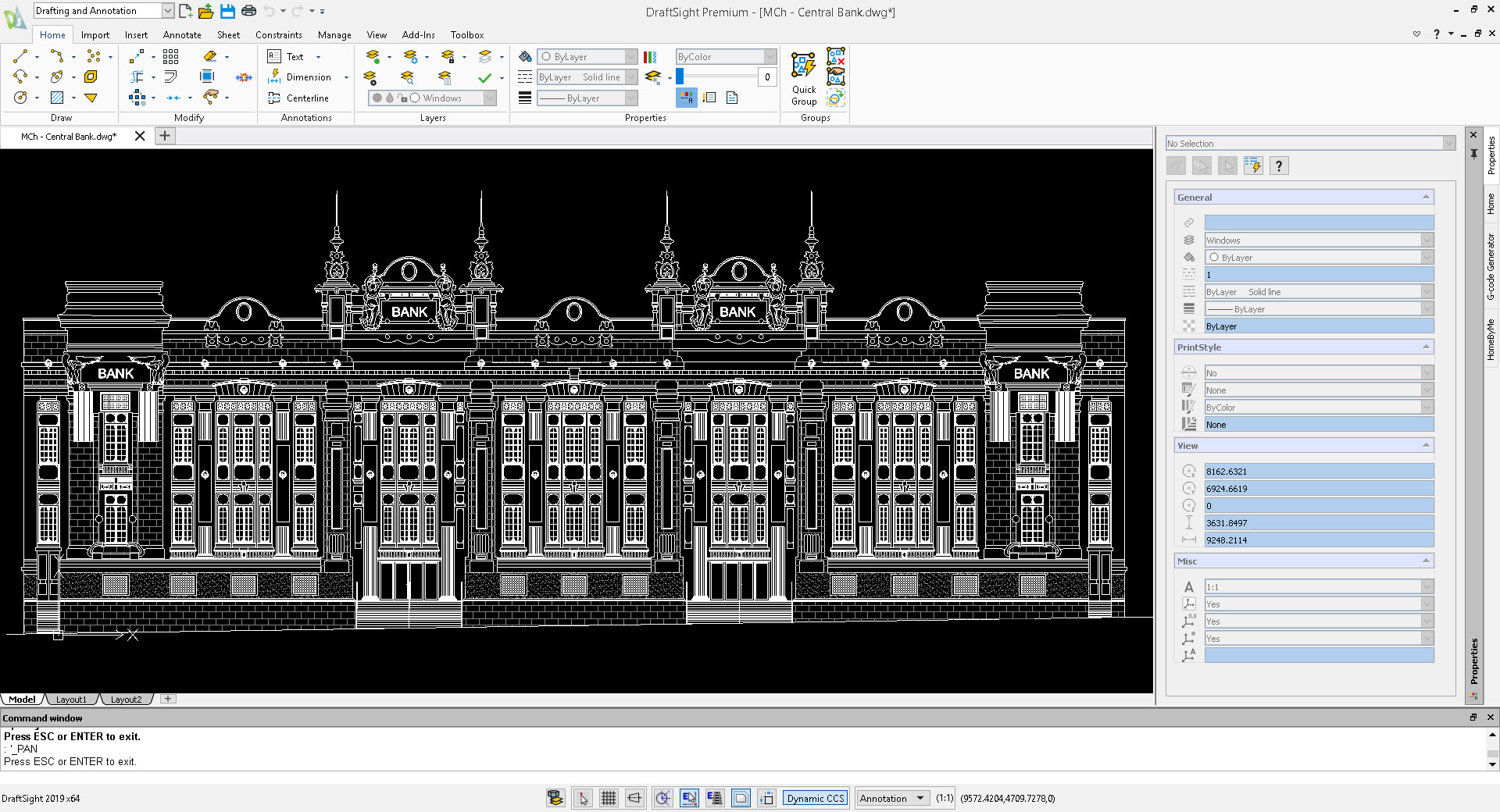

Create, edit, view and markup any kind of 2D and 3D DWG file with greater ease, speed and efficiency. Easily transition from AutoCAD® or similar CAD applications with a familiar user interface and commands.

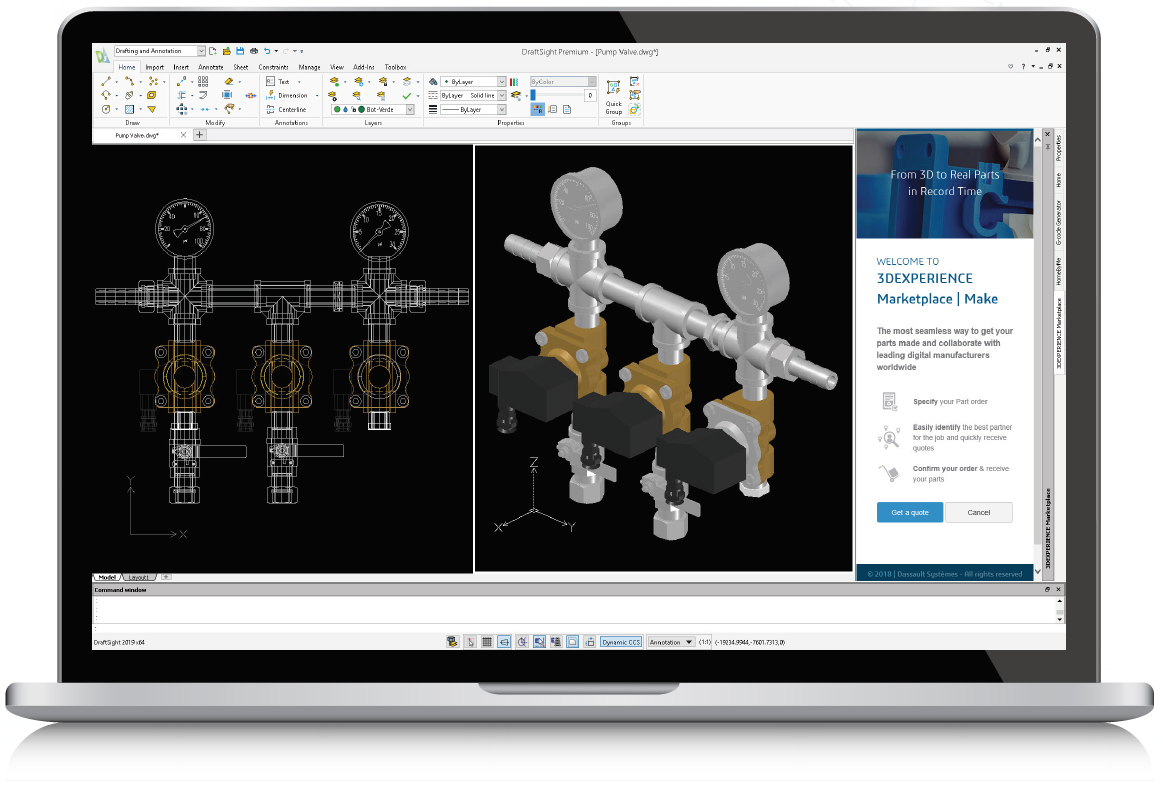

Real design freedom is letting you work the way you want to work. It’s the ability to effortlessly go from 2D drafting to 3D modeling and back again in order to optimize and maximize designs. And the capability to seamlessly integrate with other Dassault Systèmes and SOLIDWORKS® solutions, including SOLIDWORKS PDM to easily manage your DWG file designs from first inspiration to final outcome.
Customers of these products are entitled to support via email for issues relating to the software installation and activation of the license only. The contact details are available in the documentation provided at the time of purchase. For issues unrelated to installation and activation, please visit the online community noted below.
Customers of these products are entitled to support with installation, license activation and configuration. In order to obtain support, please contact us below:
Professional | Premium | Enterprise | Enterprise Plus | |
---|---|---|---|---|
Essential Tools | ||||
Draw tools (Line, Polyline, Arc, Circle, Ellipse, Table, Hatch, Cloud, Block...) | ![]() |
![]() |
![]() |
![]() |
Modify tools (Move, Copy, Rotate, Array, Scale, Trim, Chamfer, Split...) | ![]() |
![]() |
![]() |
![]() |
Layer, Block, Group, Print | ![]() |
![]() |
![]() |
![]() |
Drawing Standards and Templates | ![]() |
![]() |
![]() |
![]() |
Polyline Editing | ![]() |
![]() |
![]() |
![]() |
Hatch Layer | ![]() |
![]() |
![]() |
![]() |
Discarding Duplicate Entities | ![]() |
![]() |
![]() |
![]() |
SVG scalable icons for HD displays | ![]() |
![]() |
![]() |
![]() |
Hairline option for printout | ![]() |
![]() |
![]() |
![]() |
Layer Preview | ![]() |
![]() |
![]() |
![]() |
Block - Redefine Base Point | ![]() |
![]() |
![]() |
![]() |
Productivity Tools | ||||
Mechanical Toolbox (BOM, Revision Table, Hardware, Holes, Welding/ Surface/Finish Symbols...) | ![]() |
![]() |
![]() |
![]() |
Design Resources Library | ![]() |
![]() |
![]() |
![]() |
Batch Printing | ![]() |
![]() |
![]() |
![]() |
Drawing Compare | ![]() |
![]() |
![]() |
![]() |
Automatic Dimensioning | ![]() |
![]() |
![]() |
![]() |
Automatic Dimensioning Arrangement | ![]() |
![]() |
![]() |
![]() |
Automatic Trim Dimension Extension Lines | ![]() |
![]() |
![]() |
![]() |
Thumbwheel on the Dimension Palette | ![]() |
![]() |
![]() |
![]() |
Right Click to Select Arrow Heads | ![]() |
![]() |
![]() |
![]() |
Split Dimension | ![]() |
![]() |
![]() |
![]() |
Mass Properties Calculations | ![]() |
![]() |
||
Auto-Completion Commands | ![]() |
![]() |
![]() |
![]() |
Quick Input Methods | ![]() |
![]() |
![]() |
![]() |
Pack and Go | ![]() |
![]() |
![]() |
![]() |
Publish to DWF | ![]() |
![]() |
![]() |
![]() |
Dark Mode | ![]() |
![]() |
![]() |
![]() |
Spline Enhancements | ![]() |
![]() |
![]() |
![]() |
Associative Patterns | ![]() |
![]() |
![]() |
![]() |
PDF Import | ![]() |
![]() |
![]() |
|
Premium Tools | ||||
3D Tools | ![]() |
![]() |
||
2D Constraints | ![]() |
![]() |
||
Interoperability Tools | ||||
AutoCAD Dynamic Blocks Viewing with full configurability | ![]() |
![]() |
![]() |
![]() |
AutoCAD Dynamic Blocks Editing with full configurability | ![]() |
![]() |
||
LISP Automation (AutoLISP, Visual LISP support) | ![]() |
![]() |
![]() |
![]() |
3DExperience Integration | ![]() |
![]() |
![]() |
![]() |
3DExperience Marketplace Integration | ![]() |
![]() |
![]() |
![]() |
HomeByMe Integration | ![]() |
![]() |
![]() |
![]() |
3D Content Central Integration | ![]() |
![]() |
![]() |
![]() |
SOLIDWORKS PDM, Electrical Connectors | ![]() |
![]() |
![]() |
![]() |
Sheet Set Manager | ![]() |
![]() |
||
Enterprise Options and Support | ||||
Network license option | ![]() |
![]() |
||
Perpetual license option | ![]() |
![]() |
||
Technical support | ![]() |
![]() |
||
Community Forum Support | ![]() |
![]() |
![]() |
![]() |
